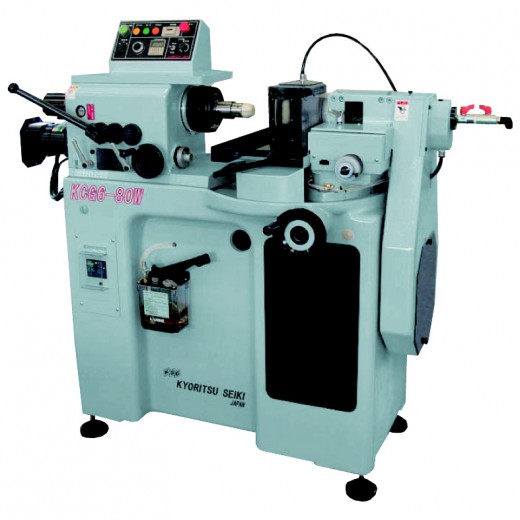

Number of wheel axis/processing configuration |
1-axis/horizontal manual machine |
NC equipment |
- |
Supply of lens |
- |
Storage of lens |
- |
chucking technology |
Collet chuck |
Supported workpiece diameter |
ϕ15 ~ ϕ80 |
Supported workpiece curvature |
±SR7.5 ~ ∞ |
Infeed axis |
Workpiece axis |
Infeed drive |
spring and weight |
Max. grinding wheel diameter |
ϕ60 |
Max. cutting capacity |
15mm |
Workpiece spindle rotation |
3 ~ 20min-1(50Hz) 3 ~ 25min-1(60Hz) |
Wheel spindle rotation |
8,000/10,000/12,000/15,000min-1 |
Workpiece spindle nose shape |
NT#35 M22P1.5 |
Wheel spindle nose shape |
(standard)ϕ20 x 1/7.5taper M22P1.0 (sub-standard)ϕ15.5 x 1/7.5taper M12.5P1.0 |
Wheel spindle drive electric motor |
0.75kW 2P |
Circular axis accuracy |
- |
Cross axis accuracy |
- |
Infeed axis accuracy |
- |
Process data memory |
- |
Size |
Width(W) |
1,260mm |
Depth(D) |
790mm |
Height(H) |
1,190mm |
Weight |
500kg |
