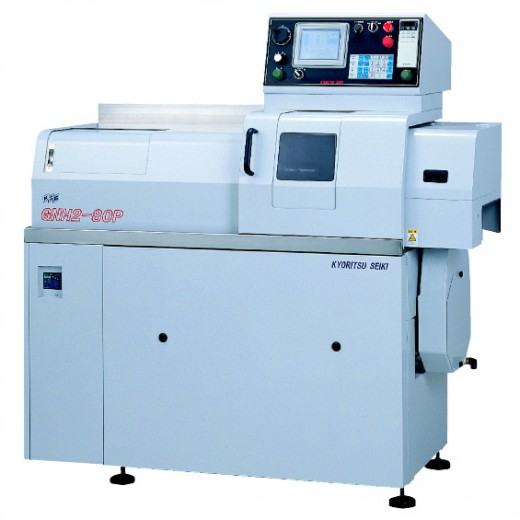

| Number of wheel axis/processing configuration |
1-axis/horizontal manual machine |
| NC equipment |
NC |
| Supply of lens |
Manual |
| Storage of lens |
Manual |
| chucking technology |
Collet chuck |
| Supported workpiece diameter |
ϕ15 ~ ϕ80 |
| Supported workpiece curvature |
±SR7.5 ~ ∞ |
| Infeed axis |
Workpiece axis(workpiece head) |
| Infeed drive |
Air hydraulic(stepping motor) |
| Max. grinding wheel diameter |
ϕ60 |
| Max. cutting capacity |
20mm(30mm) |
| Workpiece spindle rotation |
3 ~ 15min-1 |
| Wheel spindle rotation |
6,000/10,000/15,000min-1 |
| Workpiece spindle nose shape |
NT#35 M22P1.5 |
| Wheel spindle nose shape |
(standard)ϕ20 x 1/7.5taper M22P1.0 (sub-standard)ϕ15.5 x 1/7.5taper M12.5P1.0 |
| Wheel spindle drive electric motor |
0.75kW 2P |
| Circular axis accuracy |
3seconds |
| Cross axis accuracy |
0.002mm |
| Infeed axis accuracy |
(0.002mm) |
| Process data memory |
30surfaces(optionally, up to 150 surfaces can be supported) |
| Size |
Width(W) |
1,420mm |
| Depth(D) |
810mm |
| Height(H) |
1,460mm |
| Weight |
550kg |
