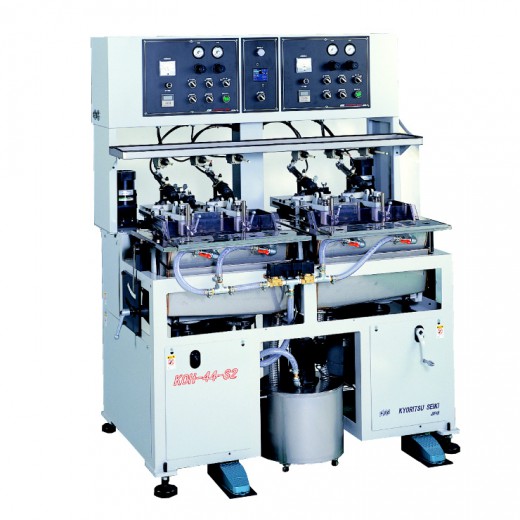

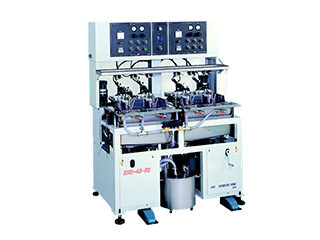

Grinding
Feature
- Oscar ellipsoidal movement
- Pressing pin equipped with a stopperPrevent pressing pin from overly sinking down
- Lightweight of triangle arm
- 4 spindles each with independent drive
- Oscar polishing with tilted workpiece spindleCapable of polishing metal material
- An unique planar-side lock of pressing pin reduces vibration.
Spec
| Processing method | Oscar(fore and aft) | |
|---|---|---|
| Spindle | 4-axis(1-axis 1-drive) | |
| Maximum workpiece diameter | ϕ90 | |
| Supported workpiece curvature | ±SR15 ~ ∞ | |
| Distance between axes | 316mm | |
| Max. tool plate diameter | ϕ160 | |
| Tool spindle nose shape | ϕ40socket | |
| Tool attachment axis | Lower spindle | |
| Main spindle tilt angle | 0 ~ 45˚ | |
| Main spindle tilt direction | fore and aft | |
| Swing distance | 0 ~ 20mm | |
| Number of swing cycles | 30CPM | |
| Workpiece spindle travel distance | -10 ~ 150mm(fore and aft) | |
| Main spindle rotation speed | 80 ~ 288min-1(stepless inverter) | |
| Pressing pin shape(Pressure pin) | ϕ16 x 200L(nose 0.3R) | |
| Pressing pin adjustable amount | ±5mm | |
| Process load | MAX22kg | |
| Processing timer | 1seconds ~ 99minutes59seconds | |
| Main spindle electric motor | 1.5kW x 4P | |
| Workpiece swing electric motor | 90W x 4P | |
| Coolant electric motor | 100W x 1P | |
| Size | Width(W) | 1,660mm |
| Depth(D) | 1,200mm | |
| Height(H) | 1,870mm | |
| Weight | 550kg | |
