Grinding

Medium grinding

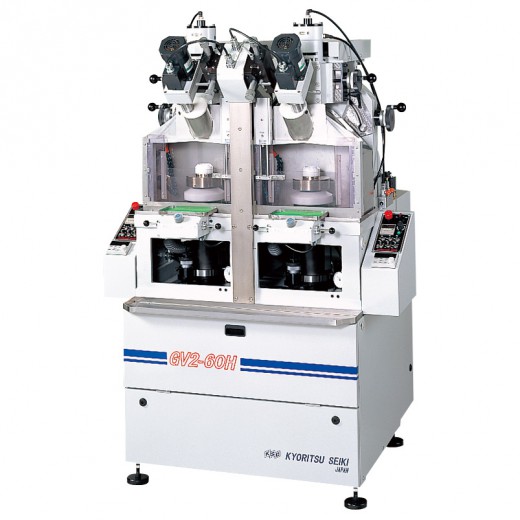

GV2-60H(P)T

PDF Download

Feature

  • 2 spindles, space-saving
  • Each spindle equipped with independent function
  • Air/hydraulic or stepping motor infeed drive

Spec

Number of wheel axis/processing configuration 2-axis/vertical manual machine
NC equipment -
Supply of lens Manual
Storage of lens Manual
chucking technology Diaphragm chuck
Supported workpiece diameter ϕ15 ~ ϕ60
Supported workpiece curvature ±SR7.5 ~ ∞
Infeed axis Workpiece axis
Infeed drive Air hydraulic(stepping motor)
Max. grinding wheel diameter ϕ50
Max. cutting capacity 15mm
Workpiece spindle rotation 4 ~ 55min-1(50Hz) 4 ~ 65min-1(60Hz)
Wheel spindle rotation 8,000 ~ 15,000min-1
Workpiece spindle nose shape ϕ18 x 8female socket M16P2.0
Wheel spindle nose shape (standard)ϕ20 x 1/7.5taper M22P1.0 (sub-standard)ϕ15.5 x 1/7.5taper M12.5P1.0
Wheel spindle drive electric motor 0.75kW 2P
Cross axis accuracy -
Circular axis accuracy -
Infeed axis accuracy (0.002mm)
Process data memory -
Size Width(W) 1,100mm
Depth(D) 950mm
Height(H) 1,630mm
Weight 750kg
